| MODEL |
CQHD308HA01 |
|
Processor |
Hi3516CV610-20S ( Three recording )
|
|
Image Sensor |
GC4653+GC1084+AHD 1080P |
|
FOV |
120° wide angle |
|
Max Video Res. |
2K 2560*1440 |
|
Encoding Capability |
Three recording： 2560*1440 30fps+1920*1080 20fps+ 30fps+1920*1080 25fps
|
|
Video Format |
H.264, encoding, MP4 format storage ;
|
|
Effective Pixels |
Single recording 4MP; |
|
Photo Format |
JPEG (2560P+1080P+1080P) |
|
G-Sensor |
Collision sensor
|
|
Record pattern
|
Loop recording without frame loss
|
|
Storage |
TF Card (Class 10 or above, with a maximum support of 256GB) ; |
|
Internal Storage |
EMMC |
|
Boot Time |
3S |
|
Working Voltage |
12V or 5V optional; |
|
Working Current |
three recording :220mA(12.0V): / three recording : 430mA (5.0V) ; |
|
Static Current |
< 1mA |
|
Battery Type |
ML621 Button Cell ; |
|
Wide Voltage Support |
Supports 5V/12V car power supply ; |
|

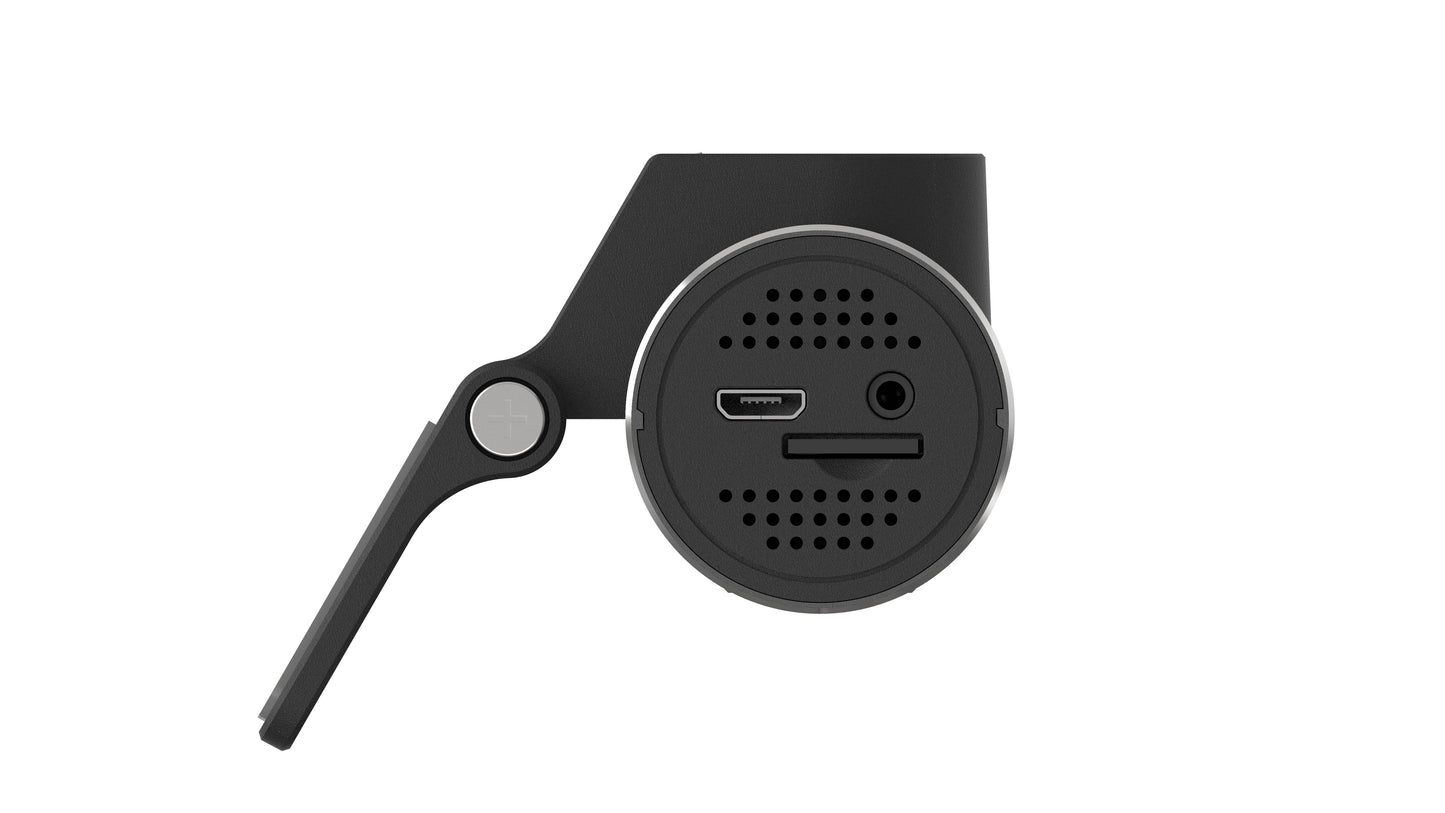

IO |
TYPE-C *1 |
Micro TF *1 |
| AV IN *1 |
|
|
OS system |
|
Weight: |
|
SIZE |
107.43*36*30.42mm |
Hosuing: Plastic |
|
Language |
|
Operation Temp: -20~+70 |
|
Support |
Voice control |
Parking Monitor (Time-lapse Recording) |
|
Save video without power (playable screen off) |
|
Time synchronization reminder (voice prompt when time is not synchronized) |
